Recovering a Protection Domain snapshot to a VM



Yesterday one of our SEs mentioned he was talking to a customer and this customer is using MCS between two separate clusters. They were looking for a way to only keep one image updated and they are then looking to use our Protection Domain to replicate it over to the other cluster. Now, they are looking for some automated way to promote that snapshot to a full VM, luckely this is something we can achieve with the Nutanix Powershell commandlets.

From the older blogs I’ve written, the following interfaces are available:

  • REST API
  • HTML5 GUI
  • CLI – ACLI & NCLI
  • Scripting interfaces (PowerShell)

The following definitions are from the Nutanix Bible as Steve Poitras already explained this:

REST API
The REST API exposes every capability and data point of the Prism UI and allows for orchestration or automation tools to easily drive Nutanix action.  This enables tools like Saltstack, Puppet, vRealize Operations, System Center Orchestrator, Ansible, etc. to easily create custom workflows for Nutanix. Also, this means that any third-party developer could create their own custom UI and pull in Nutanix data via REST.

HTML5 GUI (Prism UI)
The HTML5 UI is a key part to Prism to provide a simple, easy to use management interface.  However, another core ability are the APIs which are available for automation.  All functionality exposed through the Prism UI is also exposed through a full set of REST APIs to allow for the ability to programmatically interface with the Nutanix platform.  This allow customers and partners to enable automation, 3rd-party tools, or even create their own UI.

CLI – ACLI & NCLI
The Acropolis CLI (ACLI) is the CLI for managing the Acropolis portion of the Nutanix product.  These capabilities were enabled in releases after 4.1.2. The Nutanix CLI is the CLI for managing the Nutanix product and is more heterogeneous across hypervisors.

PowerShell
Windows PowerShell is a powerful shell (hence the name ;P) and scripting language built on the .NET framework.  It is a very simple to use language and is built to be intuitive and interactive.

This script will connect to the specified cluster, remove existing VMs with a certain prefix and will search for the available protection domains and will restore the latest snapshot in the defined protection domain. This will awckomplish what is explained in the first header of this blogpost.

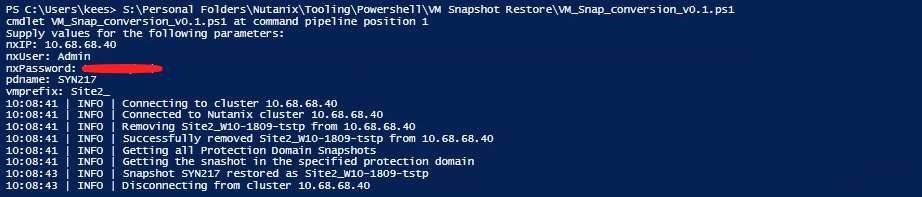

Running the scripts outputs like following:

Script output
