How to add a CD-ROM drive and mount an ISO file via powershell to an AHV-hosted VM

4 min read

Kees Baggerman·Senior Technical Director at Nutanix – Former Citrix CTP – NVIDIA Enterprise Platform Advisor – 15+ years in EUC

All posts →

Another powershell blog? Yeah, I guess it’s that kind of a month :). After writing my previous blog on How to add a NIC via Powershell to an AHV-hosted VM I got talking to one of our Services resources about a customer trying to run Citrix PVS with BDM. I figured I could easily modify the script to add a NIC so I could add a CD-ROM drive and mount an ISO file.

Another good usecase would be the VM prep for an automated deployment with the Microsoft Deployment Toolkit for example.

To recap (again) the following interfaces are available:

• REST API
• HTML5 GUI
• CLI – ACLI & NCLI
• Scripting interfaces (PowerShell)

The following definitions are from the Nutanix Bible as Steve Poitras already explained this:

As a reminder, when creating a VM via ACLI all you’d need is a few lines to create a VM, assign a nic to the VM on a specific network and do the same with a disk (create/assign) and lastly add a CD-ROM drive and mount the ISO file

vm.disk_update KBTestVM99 clone_from_adsf_file=/VDI/LiteTouchPE_x64.iso

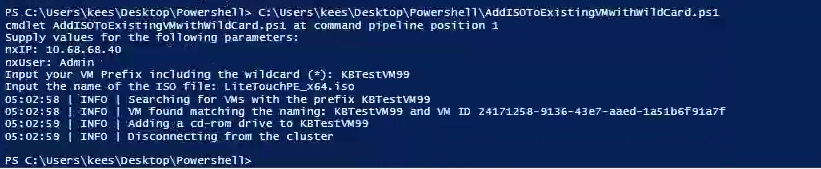

Here’s how I managed to do it with Powershell with some error handling on the parameters (i.e. quit the script when the VM can’t be found):

# kees@nutanix.com
# @kbaggerman on Twitter
# https://blog.myvirtualvision.com
# Created on March, 2019



# Setting parameters for the connection
[CmdletBinding(SupportsShouldProcess = $False, ConfirmImpact = "None") ]

Param(
    # Nutanix cluster IP address
    [Parameter(Mandatory = $true)]
    [Alias('IP')] [string] $nxIP,
    # Nutanix cluster username
    [Parameter(Mandatory = $true)]
    [Alias('User')] [string] $nxUser,
    # Nutanix cluster password
    [Parameter(Mandatory = $true)]
    [Alias('Password')] [System.Security.SecureString] $nxPassword
)

 Function write-log {
    <#
       .Synopsis
       Write logs for debugging purposes

       .Description
       This function writes logs based on the message including a time stamp for debugging purposes.
    #>
  param (
  $message,
  $sev = "INFO"
  )
  if ($sev -eq "INFO"){
    write-host "$(get-date -format "hh:mm:ss") | INFO | $message"
  } elseif ($sev -eq "WARN"){
    write-host "$(get-date -format "hh:mm:ss") | WARN | $message"
  } elseif ($sev -eq "ERROR"){
    write-host "$(get-date -format "hh:mm:ss") | ERROR | $message"
  } elseif ($sev -eq "CHAPTER"){
    write-host "`n`n### $message`n`n"
  }
}


# Adding PS cmdlets
$loadedsnapins=(Get-PSSnapin -Registered | Select-Object name).name
if(!($loadedsnapins.Contains("NutanixCmdletsPSSnapin"))){
   Add-PSSnapin -Name NutanixCmdletsPSSnapin
}

if ($null -eq (Get-PSSnapin -Name NutanixCmdletsPSSnapin -ErrorAction SilentlyContinue))
{
    write-log -message "Nutanix CMDlets are not loaded, aborting the script"
    break
}


# Connecting to the Nutanix Cluster
$nxServerObj = Connect-NTNXCluster -Server $nxIP -UserName $nxUser -Password $nxPassword -AcceptInvalidSSLCerts

if ($null -eq (get-ntnxclusterinfo))
{
    write-log -message "Cluster connection isn't available, abborting the script"
    break
}

## VM Creation
# Setting Variables
$VMPrefix = Read-Host -Prompt 'Input your VM Prefix including the wildcard (*)'
$ISO = Read-Host -Prompt 'Input the name of the ISO file'



# Searching for the VM defined
write-log -message "Searching for VMs with the prefix $VMPrefix"
$vminfo = Get-NTNXVM | Where-Object {$_.vmName -like $VMPrefix}

# Looping thru all VMs starting with the prefix and adding a disk
Foreach ($vm in $vminfo) {
        Try
        {
        $vmId = ($vm.vmid.split(":"))[2]
        write-log -message "VM found matching the naming: $($vm.vmName) and VM ID $($vmID)"
            ## Disk Creation
            Try
            {
               # Creating the Disk
                # Definition of the used ISO
                $diskCloneSpec = New-NTNXObject -Name VMDiskSpecCloneDTO
                $ISOImage = (Get-NTNXImage | Where-Object {$_.name -eq $ISO})
                $diskCloneSpec.vmDiskUuid = $ISOImage.vmDiskId
                # Setup the new ISO
                $vmISODisk = New-NTNXObject -Name VMDiskDTO
                # Configuring the drive to be a CD-ROM, passing along the specs
                $vmISODisk.isCdrom = $true
                $vmISODisk.vmDiskClone = $diskCloneSpec


            # Adding the CD-ROM and ISO to the VM
            Add-NTNXVMDisk -Vmid $vmId -Disks $vmISODisk | out-null

            write-log -message "Adding a cd-rom drive to $($vm.vmName)"
            }
            Catch
            {
            write-log -message "Failed to add a cd-rom drive to $vm.vmName"
            }
        }
        Catch
        {
        write-log -message "Could not find a VM with the name $($vm.vmName)"
        }

}

 Disconnect-NTNXCluster *
 write-log -message "Disconnecting from the cluster"
